Forensic Analysis: Integrating Veeam Backup & Replication with Sleuthkit Autopsy ( Part 1 )

Integrating Veeam Backup & Replication with Sleuthkit Autopsy ( Part 1 )

In today's digital age, data security and forensic analysis play a crucial role in investigating incidents and ensuring the integrity of digital assets. As organizations increasingly rely on backup solutions like Veeam Backup & Replication for data protection, the need for seamless integration with forensic analysis tools becomes paramount.

Building on previous discussions like:

• Orchestrating Cybersecurity Resilience
• Zero to Hero: Crafting Rules
• Threat Hunting with Veeam:

You might have triggered Veeam incident API from SIEM/XDR once an IOC was identified in an active attack. The incident API would capture an immediate backup image of the compromised server, preserving data before encryption. Utilizing the built-in YARA engine with Veeam, you could scan against its historical backup chain for known malicious tools used in the kill chain, pre-encryption or exfiltration.

The identified backups can be mounted with Veeam without recovering the data, providing a sandbox for forensic analysis. Whether you're in law enforcement or incident response, Autopsy can be used to run multiple ingest modules against these backup images to build a timeline and case against a cyber incident or individual.

Introduction:

In this blog post, we'll explore how to automate the process of making backup data from Veeam available for analysis in Autopsy. By integrating these two tools, we can streamline forensic investigations and expedite incident response processes, without having to use a production-compromised server or recover a copy. Instead, we will use Veeam FLR to mount the backup filesystem and present it as a data source to Autopsy in an automated process.

Requirements:

• Autopsy installed on the server used for forensic analysis.
  Autopsy (sleuthkit.org

• Python installed, along with the following libraries installed via pip:

Libraries used in Python script:

pip install requests tqdm

The other libraries (os, subprocess, and shutil) are built into Python and do not need separate installation.

Find the Script Here : mritsurgeon/autopsy (github.com)

Setup:

Before we dive into the integration process, let's set up the necessary variables:

Set up These variables Before Script Execution

# Veeam Backup & Replication server IP/FQDN address

veeam_server = "10.0.0.1"

# Server IP/FQDN address where the backup will be mounted

mount_server = "10.0.0.1"

# Username for accessing mount server, using $ share

username = f"administrator@{mount_server}"

# Password for accessing mount server over network $ share

password = "Veeam123"

# Veeam API user to get OAuth Token

api_user = "administrator"

# Veeam API password to get OAuth Token

api_password = "Veeam123"

# Identifier for the case in Autopsy

case_number_ID = "x12jz"

# Path to Autopsy installation directory

autopsy_path = r"C:\Program Files\Autopsy-4.20.0\bin"

# Folder where the restored data will be mounted for analysis on local Server & CASE files

triage_folder = r'C:\triage'

How it Works:

The integration script follows these steps:

1. Obtain Access Token: The script obtains an access token from the Veeam API using the provided credentials.
2. Fetch Restore Point Data: It fetches the latest restore point data from Veeam backup.
3. Select Restore Point: The latest restore point, filtered based on allowed operations, is selected for Mount.
4. Initiate Mount: The script initiates the FLR process.
5. Wait for Data Availability: After Mount, it waits for 2 minutes to ensure the data is available on Mount Server by checking for Volume1 Presence.
6. Symlink Data: It mounts the backup data on the network path and creates symbolic links in the triage folder to local machine running Autopsy.
7. Launch Autopsy: Finally, it constructs and executes a command to launch Autopsy & create a Case with the backup data as Data Source for forensic analysis.

Usage:

Using the integration script is straightforward:

1. Set the required variables at the beginning of the script.




2. Run the script using Python.

FLR Mounting VM File System

3. Autopsy will be launched automatically after the Mount process is completed.



4. You will See Autopsy running in Command line Mode :

            Looking into the Command line we can see where it is in process:

             You can also see a Triage folder on your root of C :

In your Triage folder you will notice

Symlink to FLR of Filesystem mount of the Backup Being Investigated

&

The Case folder for your Investigation

Once Complete, you will See script at this point:

You will also have a New Window Open in Autopsy:

Select Open Case , and select the newly create case folder in your local Triage folder.

Once opened, you will see Volumes of the Server we want to investigate:

** To Improve the speed of the Command Line, I left off the Ingest module parameter:

Ingest Modules are Autopsy plug-ins , each Ingest Module is designed to analyse and retrieve specific data from the data source in this case our backups.

Autopsy ingest modules are specialized tools within the Autopsy digital forensics platform designed to analyze and extract information from various types of digital evidence. These modules help forensic examiners efficiently process and interpret data during investigations. Here's a brief explanation of some:

1. Recent Activity: Shows recent user activity within the last seven days, aiding in understanding recent actions on a system.
2. Hash Lookup: Calculates file hash values and checks them against known databases to identify potentially malicious files.
3. File Type Identification: Determines the file type based on internal signatures, helping to identify file formats even if they have been renamed or have misleading extensions.
4. Extension Mismatch Detector: Identifies files with extensions that do not match their detected file type, potentially indicating attempts to hide data.
5. Embedded File Extraction: Extracts files from archive formats to analyze their contents, facilitating keyword searches and hash lookups within compressed files.
6. Picture Analyzer: Extracts metadata from images using the EXIF format, providing information such as camera settings, geolocation, and timestamps.
7. Keyword Search: Allows manual text searches within the data source for specific keywords or phrases.
8. Email Parser: Parses and analyzes email communications, assisting in investigations involving email evidence.
9. Encryption Detection: Identifies encrypted files using entropy calculations and specialized tests, helping to flag potentially encrypted data.
10. Interesting Files Identifier: Enables the identification and flagging of files or directories deemed significant by the examiner.
11. Central Repository: Facilitates cross-case and cross-data source artifact matching, aiding in correlation and analysis across multiple cases or data sources.
12. PhotoRec Carver: Recovers files from unallocated space on a storage device, useful for retrieving deleted or lost files.
13. Virtual Machine Extractor: Adds virtual machines found in the data source as new data sources for further analysis.
14. Data Source Integrity: Verifies the integrity of the data source by checking hashes or calculating them if unavailable.
15. Drone Analyzer: Analyzes files from the internal SD card of a drone, assisting in investigations involving drone-related incidents.
16. iOS Analyzer: Utilizes external modules to analyze iOS logs, events, and property list (Plist) files for insights into iOS devices.
17. Android Analyzer: Analyzes SQLite and other files from Android devices, aiding in investigations involving Android-based evidence.
18. GPX Parser: Imports GPS data from GPX files, useful for mapping and geolocation analysis.

These modules provide forensic examiners with powerful tools to uncover, analyze, and interpret digital evidence effectively during investigations

So let’s run the Ingest module against our data:

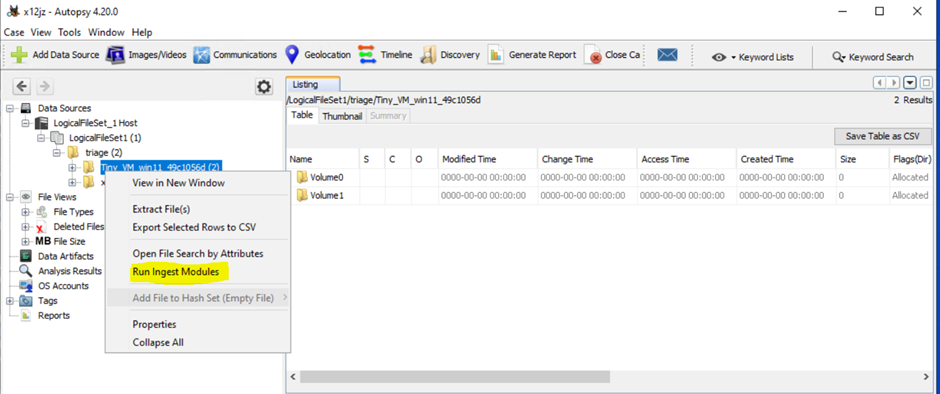

Right Click on our Server ( My Example : Tiny VM )

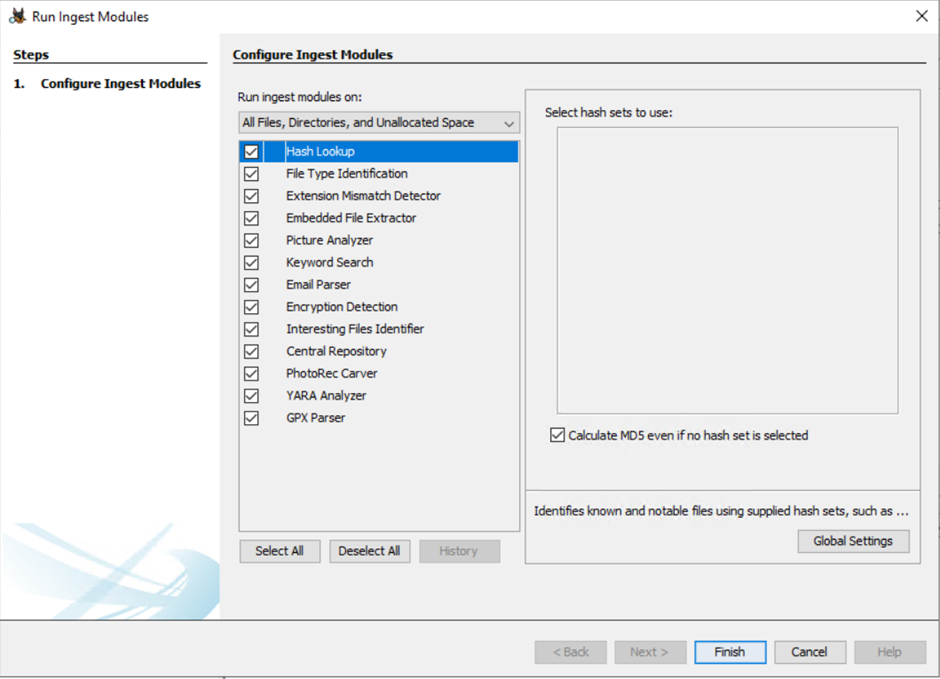

We select the ingest modules we want to use for our investigation:

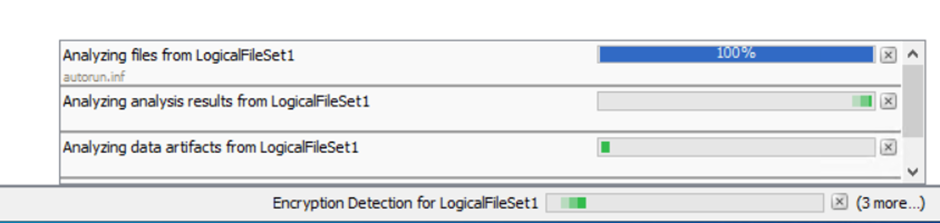

You can see it here Ingest running:

This can take some time:

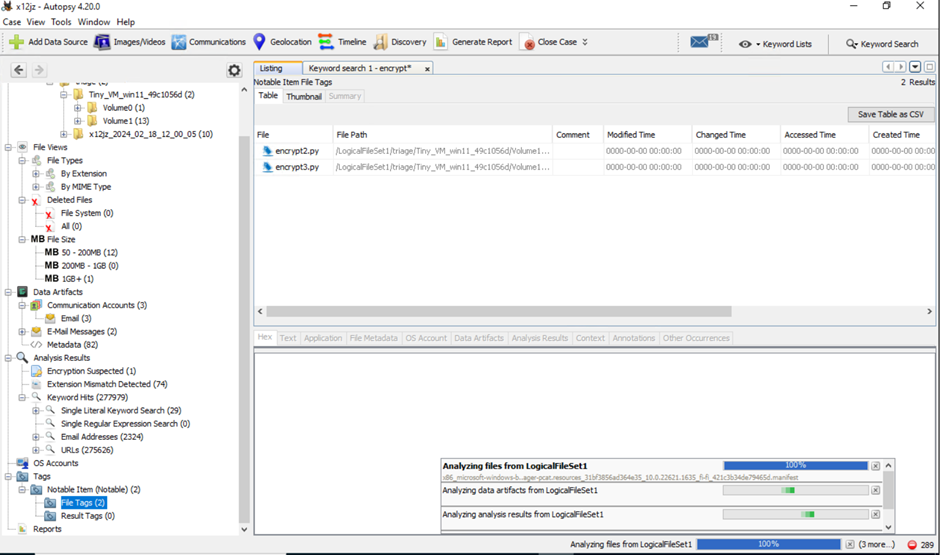

It's started Populate, I can see A lot of URLs / Emails Aswell as Encrypted files, Further I’ve tagged 2 Python Script I want to come back too and analyze.

More Ingest Models can be added that are not out of the box, for things like Browser Passwords, cookies, history & other meta data.

You can find More Here:

Autopsy 3rd Party Modules - SleuthKitWiki

&

autopsy/thirdparty at develop · sleuthkit/autopsy (github.com)

Finally, we can generate a Case report (I’ve done no customization)

** Note i did not wait for the ingest scanning to complete before i initiated a report see writing in red.

Conclusion:

By automating the integration between Veeam and Autopsy, organizations can streamline their forensic analysis processes and enhance their incident response capabilities. This integration empowers cybersecurity professionals to investigate incidents more efficiently and effectively, ultimately strengthening the organization's overall security posture by leveraging the data that Veeam already has , this would include a Scenario where a Hacker or Bad Actor tried to clean up after the event , we could find such evidence in older backup images over time.

This is the process of using backup images as the forensic source, without having to recover that backup image & protecting the backup image as its always in a Read-only state.
